Description

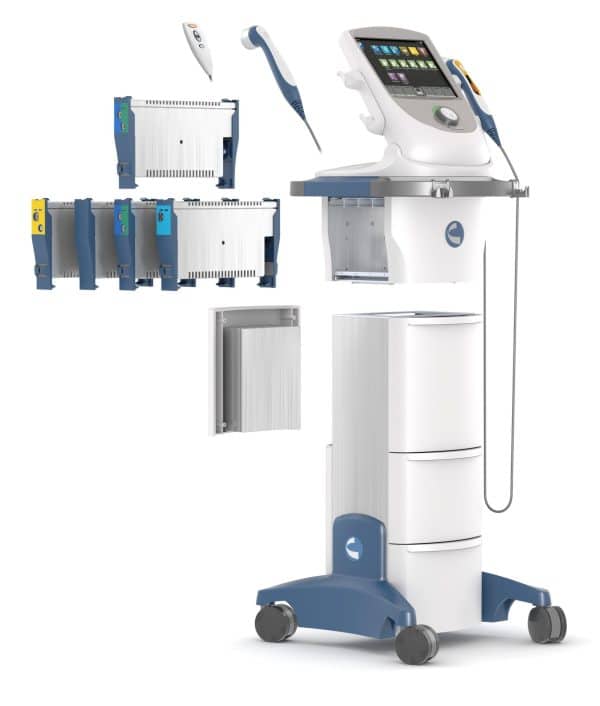

Vectra™ Neo Ultrasound Module Only. Must add to the Neo Base Unit Model #6000.
*Applicators Sold Separately.
ULTRASOUND Specs:
Frequency: 1 MHz, ± 5%; 3.3 MHz, ±5%
Duty Cycles: 10%, 20%, 50%, Continuous
Pulse Repetition Rate: 100 Hz ±20%
Pulse Duration: 1 mSec, ±20%; 2 mSec, ±20%; 5 mSec, ±20%
Output Power:
10 cm2 Crystal: 0-15 W @ 1 MHz,
0-10 W @ 3.3 MHz
5 cm2 Crystal: 0-6W @ 1 and 3.3 MHz
2 cm2 Crystal: 0-3 W @ 1 and 3.3 MHz
1 cm2 Crystal: 0-1.5 W @ 3.3 MHz
Amplitude: 0 to 2.5 W/cm² in continuous and pulsed modes
Output accuracy: ± 20%, 10% of maximum
Temporal Peak to Average Ratio:
2:1, ± 20%, at 50% Duty Cycle
5:1, ± 20%, at 20% Duty Cycle
9:1, ± 20%, at 10% Duty Cycle
Beam Nonuniformity Ratio (BNR): 5:1 maximum Beam Type, Collimating
IPXX Rating for Unit: IPX0
IPXX Rating for Applicator: IPX7
Effective Radiating Areas (ERA):
| Effective Readiating Areas | |||||
| ERA High | ERA Low | ||||
| Description | ERA (cm2) | cm2 | % | cm2 | % |
| 10 cm2 Crystal | 8.5 | 10 | + 18% | 7 | – 18% |
| 5 cm2 Crystal | 4 | 5 | + 25% | 3 | – 25% |
| 2 cm2 Crystal | 1.8 | 2 | + 11% | 1.4 | – 22% |
| 1 cm2 Crystal | 0.9 | 1 | + 11% | 0.4 | – 55% |
Head Warming Feature
The Head Warming feature of a Vectra® Neo Clinical Therapy System utilizes Ultrasound output,
resulting in warming of the Applicator to increase patient comfort. With Head Warming enabled,
ultrasound is emitted without pressing the Start button while an ultrasound treatment is being setup.
The Applicator LED will not illuminate during the Head Warming period. US Channel will indicate “Head
Warming”.
Output: 0 – 50% Cycling of maximum power
Frequency: 3.3 MHz
Applicator Temperature: 29.4 °C – 43.3 °C (85 °F – 110 °F)
